Home / Products / 5 axis cnc machine
Vertical Machining Center
5 axis cnc machine
Drilling and Tapping Center
Horizontal Machining Center
Gantry Machining Center
Horizontal CNC Lathe

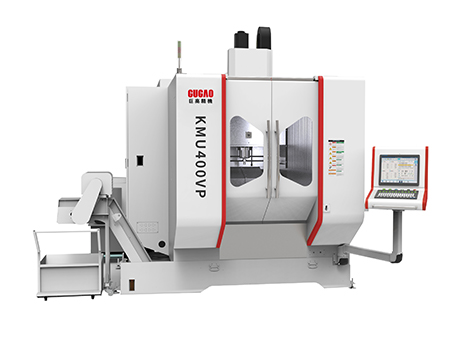

X/Y/Z Travel: 500/500/400
Worktable Size:
Max.loading Capacity: Vertical:35 / Horizontal:45KG
| Item | Unit | Parameter | Remarks |
|---|---|---|---|
| Working Range | |||
| X/Y/Z Axis Travel | mm | 500/500/400 | |
| Distance from Spindle Center to Column Guideway | mm | 554 | |
| Distance from Spindle Nose to Worktable Surface | mm | 60–460 | |
| Cradle Rotary Table | |||
| Table Drive Type | - | DD Torque Motor Drive | |
| Table Size | mm | Ø260 | |
| T-slot / Guide Key Width | mm | 12H7 / 21 | |
| Max. Machining Diameter | mm | 345 | |
| A/C Axis Rotation Angle | ° | ±130 / 0~360 | |
| Max. Load Capacity | kg | Vertical:35 / Horizontal:45 | |
| Max. Speed of A/C Axis | rpm | 250 / 250 | |
| A-axis Rated / Max. Torque | N·m | 105 / 332 | |
| C-axis Rated / Max. Torque | N·m | 35.5 / 77.85 | |
| A-axis Positioning / Repeat Accuracy | Arc.sec | ±5 / 1.5 | |
| C-axis Positioning / Repeat Accuracy | Arc.sec | ±5 / 1.5 | |
| Spindle | |||
| Spindle Dia. / Taper | mm | Ø100 / BBT30 | |
| Spindle Speed | rpm | 20000 | |
| Spindle Motor Power | kW | 3.7/5.5 (CV0) / 3.7/5.5 (CS0) | Rated / Max |
| Spindle Motor Torque | N·m | 12/23.8 (CV0) / 12/22 (CS0) | Rated / Max |
| 3-Axis Motor | |||
| Motor Power X/Y/Z | kW | 3.1 / 3.1 / 3.9 | |
| Motor Torque X/Y/Z | N·m | 15 / 15 / 18.6 | |
| Feed Speed | |||
| Rapid Traverse X/Y/Z | m/min | 48/48/48 | |
| Cutting Feedrate X/Y/Z | m/min | 10/10/10 | |
| Tool Magazine | |||
| Tool Capacity | pcs | 21 | |
| Max. Tool Dia. / Length / Weight | - | Ø60mm / 200mm / 3kg | |
| Max. Tool Dia. (Full Magazine / Adjacent Empty Pocket) | mm | 60 / 80 | |
| Tool Change Time (Tool to Tool) | s | 1.4 | |
| Accuracy | |||
| Positioning Accuracy (X/Y/Z) | mm | 0.005 | |
| Repeat Positioning Accuracy (X/Y/Z) | mm | 0.003 | |
| Ball Screw | |||
| Ball Screw Spec. (X/Y/Z) | mm | 28-12 / 28-12 / 32-12 | |
| Linear Guideway | |||
| Linear Rolling Guide Spec. (X/Y/Z) | mm | 30 / 30 / 35 | |
| Others | |||
| Air Flow / Air Pressure | - | 280L/min , 6～8 bar | |
| Total Electrical Capacity | kVA | 25 | |
| Machine Overall Dimension (L×W×H) | mm | 2100×2890×2850 | |
| Machine Weight (Approx.) | kg | 4300 |
Item/Content Parameter | Parameter |
| X-axis Stroke | 485(mm） |
Y-axis Stroke | 760(mm) |
| Z-axis Stroke | 600(mm) |
| A-axis Stroke | -30°～110° |
| C-axis Stroke | 0-360° |
| 5-axis Turret mm | ¢320-480 |
Distance from Spindle Nose to Turret Surface | 15-615(mm) |
| Distance from Spindle Center to Column Rail Surface | 657(mm ） |
| Maximum Swing Diameter | 530（mm） |
| A-axis at 90° | 480*365 (mm） |
| Worktable Area | ¢320(mm） |
| Maximum Load Capacity | 50(kg） |
| T-slot | 12H7(mm) |
System | 220MA-5 Syntec |
| Spindle Motor Power | 11/22(rkw) |
| Spindle Speed | 15000(rpm） |
| Spindle Taper and Specification | Φ150/BT40 |
| Motor-Spindle Connection Mode | Direct Drive |
| A/C Axis Type | DD Direct-drive Turret |
A-axis Maximum Speed | 200(rpm） |
| C-axis Maximum Speed | 250(rpm） |
| A-axis Positioning Accuracy/Repeat Accuracy | ±5/3(sec) |
| C-axis Positioning Accuracy/Repeat Accuracy | ±5/3(sec) |
| A-axis Rated Torque/Maximum Torque | 300/600(N．m ) |
| C-axis Rated Torque/Maximum Torque | 105/332(N．m ) |
| Distance from Turret Surface to A-axis Center Line | 3(mm) |
X/Y/Z Axis Roller Guide Rails | 35/45/45（mm） |
| X/Y/Z Axis Ball Screws | 4012/4012/4012（mm） |
| X/Y/Z Rapid Traverse Speed | 36/36/36（m/min） |
| Cutting Feed Speed | 0-10000 (mm/min) |
| Minimum Feed Rate | 0.001 (mm) |
| X/Y/Z Servo Motor Drive Mode | Direct Drive |
| 3-axis Servo Motor Power | 3.9/5.9/5.9 (kw ) |
| X/Y/Z Servo Motor Speed | 3000 (rpm） |
| Positioning Accuracy (X/Y/Z) | 0.008 (mm) |
| Repeat Positioning Accuracy (X/Y/Z) | 0.005 (mm) |
Number of Tools | 32 （pcs） |
Tool Magazine Type | Disc-type |
| Maximum Tool Diameter/Length/Weight | Φ75mm/300mm/7kg |
| Maximum Tool Diameter (Full Tool/Adjacent Empty Tool) | 5/150 (mm) |
| Automatic Tool Changing Time | 1.5 (s) |
| Air Source/Air Pressure | 280L/min 6～8bar |
Total Electrical Capacity of Machine Tool | 30 (KVA ) |
| Power Supply | AC380V3PH/50/60Hz（V） |
| Water Tank Volume | 350 (L) |
| Overall Dimensions of Machine Tool | 2700*2900*3000 (mm) |
| Machine Tool Weight | 5800（kg） |
| Item/Content Parameter | Parameter |
| X-axis Stroke | 500（mm） |
| Y-axis Stroke | 520（mm） |
| Z-axis Stroke | 510(mm) |
| A-axis Stroke | -110°～110° |
| C-axis Stroke | 0-360° |
| 5-axis Turret | ¢260-390 |
| Distance from Spindle Nose to Turret Surface | 15-525(mm) |
| Distance from Spindle Center to Column Rail Surface | 557(mm) |
| Maximum Swing Diameter | 528.8(mm) |
| Worktable Area | ¢260(mm) |
| A-axis Positioning Accuracy/Repeat Accuracy | ±10/2(sec) |
| C-axis Positioning Accuracy/Repeat Accuracy | ±10/2(sec) |
| A-axisRated Torque/Maximum Torque | 300/600(N.m) |
| C-axis RatedTorque/Maximum Torque | 105/332(N.m) |
| X/Y/Z Axis Roller Guide Rails | 35/35/35(mm) |
| X/Y/Z Axis Ball Screws | 3616/3616/3616(mm) |
| X/Y/Z Rapid Traverse Speed | 48/48/48(m/min) |
| Cutting Feed Speed | 0-12000(rpm) |
| Minimum Feed Rate | 0.001(mm) |
| X/Y/Z Servo Motor Drive Mode | Direct Drive |
| 3-axis Servo Motor Power | 3.1/3.1/5.9(kw) |
| X/Y/Z Servo Motor Speed | 3000(rpm) |
| Positioning Accuracy (X/Y/Z） | 0.008(mm) |
| Repeat Positioning Accuracy (X/Y/Z) | 0.005(mm) |
| Number of Tools | 24 |
| Tool Magazine Type | Disc-type |
| eMaximum Tool Diameter/Length/Weight | Φ75mm/300mm/7kg |
| Maximum Tool Diameter (Full Tool/Adjacent Empty Tool) | 75/150(mm) |
| Automatic Tool Changing Time | 1.5(s) |
| Air Source/Air Pressure | 280L/min 6～8bar |
| Total Electrical Capacity of Machine Tool | 25(KVA) |
| Power Supply | AC380V3PH/50/60Hz |
| Water Tank Volume | 350(L) |
| Overall Dimensions of Machine Tool | 2200*2900*2950(mm) |
| Machine Tool Weight | 4500(kg) |
X/Y/Z Travel: 850/950/550 mm
Worktable Size: Φ800 mm
Max.loading Capacity: 1000 KG
| Item/Content | Parameter |
| Rotary table dimensions | Φ800(mm) |
| Allowable load | 1000(kg) |
| Maximum swing diameter | Φ1000(mm) |
| T-slots (number of slots - slot width * spacing) | 7-18*100(mm) |
| X-axis travel | 850(mm) |
| Y-axis travel | 950(mm) |
| Z-axis travel | 550(mm) |
| A-axis rotation range | ±120(deg) |
| C-axis rotation range | 360(deg) |
| Vertical distance from spindle nose to table surface | 150~700(mm) |
| Spindle specifications | HSK A63(/) |
| Spindle diameter | Φ190(mm) |
| Spindle speed | 18000(R.P.M) |
| Spindle rated/maximum power (S1/S6) | 27.5/33.5(kW) |
| Spindle rated/maximum torque (S1/S6) | 100/120(N·M) |
| X/Y2/Z servo motor power | X:4.3 Y1/Y2:3.14 Z:4.3(kW) |
| X/Y2/Z motor torque | X:27 Y1/Y2:20 Z:27(N·M) |
| A/C servo motor power | A1/A2:16.1 C:8.8(kW) |
| A/C motor torque | A1/A2:2700/3650 C:2110/3500(N·M) |
| Cutting speed | 1~20000(mm/min) |
| Rapid traverse speed | X\Y\Z：36000(mm/min) |
| A-axis rapid traverse rotation speed | 30(R.P.M) |
| C-axis rapid traverse rotation speed | 50(R.P.M) |
| XYZ Positioning Accuracy | X/Y/Z:0.008(mm) |
| XYZ Repeat Positioning Accuracy | X/Y/Z:0.005(mm) |
| AC Positioning Accuracy | A：8 C: 8(Arcsec) |
| AC Repeat Positioning Accuracy | A：5 C：5(Arcsec) |
| Tool specifications | HSK A63 (/) |
| Tool selection method | Bidirectional arbitrary tool selection (/) |
| Number of tools allowed | 40(pcs) |
| Maximum tool diameter (full/neighboring empty) | Φ80/Φ120 (mm) |
| Maximum tool length | 300(mm) |
| Maximum tool weight allowed | 8(kg) |
| Tool change time (tool-tool) | 5(sec) |
| Power Requirements | 3Ф380V、50HZ、85KVA(/) |
| Required Air Pressure | 5.5~6.5(kgf/cm²) |
| Machine Net Weight | 15000(Kg) |
| Machine Dimensions (L x W x H) | 4815x4319x3600(mm) |
| Item/Content | Parameter |
| Rotary table dimensions | Φ650(mm) |
| Allowable load | 600(kg) |
| Maximum swing diameter | 800(mm) |
| T-slots (number of slots - slot width * spacing) | 5-18*100(mm) |
| X-axis travel | 700(mm) |
| Y-axis travel | 800(mm) |
| Z-axis travel | 550(mm) |
| A-axis travel | ±120(deg) |
| C-axis travel | 360(deg) |
| Vertical distance from spindle nose to table surface | 150~700(mm) |
| Spindle specifications | HSK A63(/) |
| Spindle diameter | Φ190(mm) |
| Spindle speed | 18000(R.P.M) |
| Spindle rated/maximum power (S1/S6) | 27.5/33.5(kW) |
| Spindle Rated/Maximum Torque (S1/S6) | 100/120(N·M) |
| X/Y2/Z Servo Motor Power | X:4.3 Y1/Y2:3.14 Z:4.3(kW) |
| Servo Motor Torque | X:27 Y1/Y2:20 Z:27(N·M) |
| A/C Servo Motor Power | A/A1:9.7 C:8.1(kW) |
| A/C Motor Torque | A/A1:1680/2950 C:860/1600(N·M) |
| Cutting speed | 1~20000(mm/min) |
| Rapid traverse speed | X\Y\Z:36000(mm/min) |
| A-axis rapid traverse rotation speed | 30(R.P.M) |
| C-axis rapid traverse rotation speed | 50(R.P.M) |
| XYZ Positioning Accuracy | X/Y/Z:0.008(mm) |
| XYZ Repeat Positioning Accuracy | X/Y/Z:0.005(mm) |
| AC Positioning Accuracy | A：8 C: 8(Arcsec) |
| AC Repeat Positioning Accuracy | A：5 C：5(Arcsec) |
| Tool specifications | HSK A63 (/) |
| Tool selection method | Bidirectional arbitrary tool selection (/) |
| Number of tools allowed | 40(pcs) |
| Maximum tool diameter (full/neighboring blank) | Φ80/Φ120 (mm) |
| Maximum tool length | 300(mm) |
| Maximum permissible tool weight | 8(kg) |
| Tool change time (tool-tool) | 5(sec) |
| Power Requirements | 3Ф380V、50HZ、85KVA(/) |
| Required Air Pressure | 5.5~6.5(kgf/cm²) |
| Machine Net Weight | 14000(Kg) |
| Machine Dimensions (L x W x H) | 4815x3800x3600(mm) |
| Item/Content | Parameter |
| Turntable size | Φ500(mm) |
| Allowable load | 200(kg) |
| Maximum rotary diameter | Φ650(kg) |
| T-slot (number of slots - slot width * spacing) | 8*14* homogeneous (dispersion)(kg) |
| X-axis travel | 550(mm) |
| Y-axis travel | 650(mm) |
| Z-axis travel | 450(mm) |
| A-axis rotation range | ±120(deg) |
| C-axis rotation range | 360(deg) |
| Vertical distance from spindle nose to table surface | 150~600(mm) |
| Tool shank specification | HSK A63(/) |
| Spindle diameter | Φ190(mm) |
| Spindle speed | 18000(R.P.M) |
| Spindle rated/maximum power (S1/S6) | 27.5/33.5(kW) |
| Spindle rated/maximum torque (S1/S6) | 100/120(N·M) |
| X/Y2/Z servo motor power | x:3.14 y1/y2:3.14 z:3.14(kW) |
| Servo motor torque | X:20 Y1/Y2:20 Z:20(N·M) |
| A/C servo motor power | A:7.9 (single drive) C:3.7(kW) |
| A/C motor torque | A:1012/1900 (single drive) C:356/670(N·M) |
| Cutting speed | 1~20000(mm/min) |
| Rapid traverse speed | X\Y\Z:36000(mm/min) |
| A-axis rapid traverse rotation speed | 30(R.P.M) |
| C-axis rapid traverse rotation speed | 50(R.P.M) |
| XYZ Positioning Accuracy | X/Y/Z:0.008(mm) |
| XYZ Repeat Positioning Accuracy | X/Y/Z:0.005(mm) |
| AC positioning accuracy (plus direct measurement system) | A：8 C: 8(Arcsec) |
| AC Repeat Positioning Accuracy (plus direct measurement system) | A：5 C：5(Arcsec) |
| Tool specifications | HSK A63(/) |
| Tool selection method | Bi-directional arbitrary tool selection(/) |
| Number of tool allowances | 40(pcs) |
| Maximum tool diameter (full/neighboring empty) | Φ80/Φ120(mm) |
| Maximum tool length | 300(mm) |
| Maximum allowable tool weight | 8(kg) |
| Tool change time (tool-tool) | 5(sec) |
| Power Requirements | 3Ф380V、50HZ、60KVA(/) |
| Required air pressure | 5.5~6.5(kgf/cm²) |
| Machine net weight | 11000(kg) |
| Machine size (L×W×H) | 4600x3600x3200(mm) |
| Item/Content | Parameter |
| Turntable size | Φ400(mm) |
| Allowable load | Φ150(kg) |
| Maximum rotary diameter | Φ500(mm) |
| T-slot (number of slots - slot width * spacing) | 8*14* homogeneous (dispersion)(mm) |
| X-axis travel | 450(mm) |
| Y-axis travel | 550(mm) |
| Z-axis travel | 400(mm) |
| A-axis rotation range | ±120(deg) |
| C-axis rotation range | 360(deg) |
| Vertical distance from spindle nose to table surface | 150~550(mm) |
| Tool shank specification | HSK A63(/) |
| Spindle diameter | Φ150(mm) |
| Spindle speed | 20000(R.P.M) |
| Spindle rated/maximum power (S1/S6) | 20/24(kW) |
| Spindle rated/maximum torque (S1/S6) | 30.7/36.8(N-M) |
| X/Y2/Z servo motor power | X:3.14 Y1/Y2:3.14 Z:3.14(kW) |
| Servo motor torque | X:20 Y1/Y2:20 Z:20(N-M) |
| A/C servo motor power | A:7.9 (single drive) C:3.7(kW) |
| A/C motor torque | A:1012/1900 (single drive) C:356/670(N-M kW) |
| Cutting speed | 1~20000(mm/min) |
| Rapid traverse speed | X\Y\Z:36000(mm/min) |
| A-axis rapid traverse rotation speed | 30(R.P.M) |
| C-axis rapid traverse rotation speed | 80 (R.P.M) |
| XYZ Positioning Accuracy | X/Y/Z:0.008(mm) |
| XYZ Repeat Positioning Accuracy | X/Y/Z:0.005(mm) |
| AC positioning accuracy (plus direct measurement system) | A: 8 C: 8(Arcsec) |
| AC Repeat Positioning Accuracy (plus direct measurement system) | A: 5 C: 5(Arcsec) |
| Tool specifications | HSK A63(/) |
| Tool selection method | Bi-directional arbitrary tool selection(/) |
| Number of tool allowances | 24(pcs) |
| Maximum tool diameter (full/neighboring empty) | Φ80/Φ120(mm) |
| Maximum tool length | 300(mm) |
| Maximum allowable tool weight | 8(kg) |
| Tool change time (tool-tool) | 5(sec) |
| Power Requirements | 3Ф380V、50HZ、85KVA(/) |
| Required air pressure | 5.5~6.5(kgf/cm²) |
| Machine net weight | 6500(㎏) |
| Machine size (L×W×H) | 3800x3253x2800(mm) |
Hi! Welcome back.
How are you doing?
High-end intelligent equipment overall solution provider
+86 138-0962-2930
No. 772, Meijing West Road, Dalang Town, Dongguan, China
English
French
Spanish
German
Vietnamese
